Product Specification

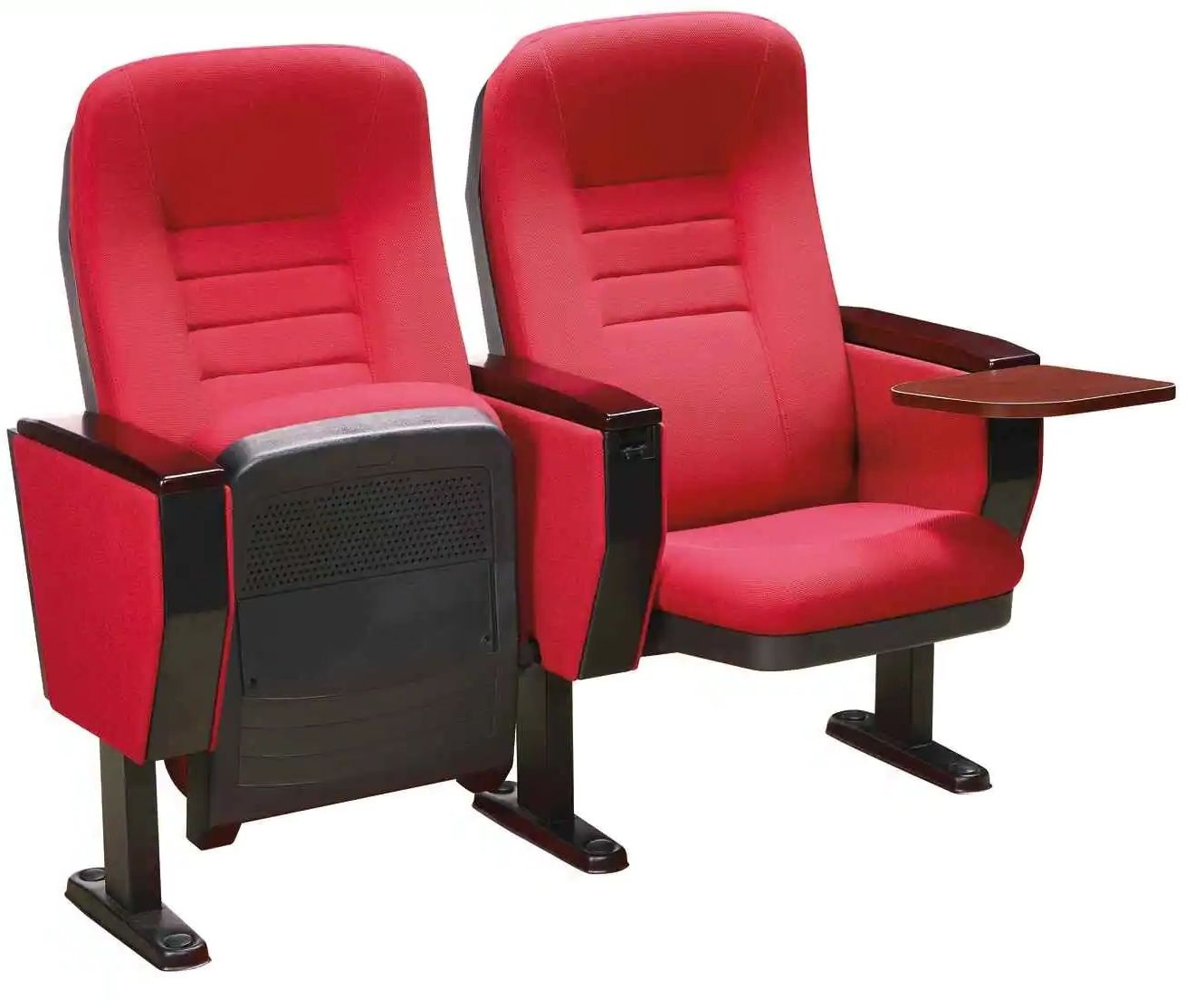

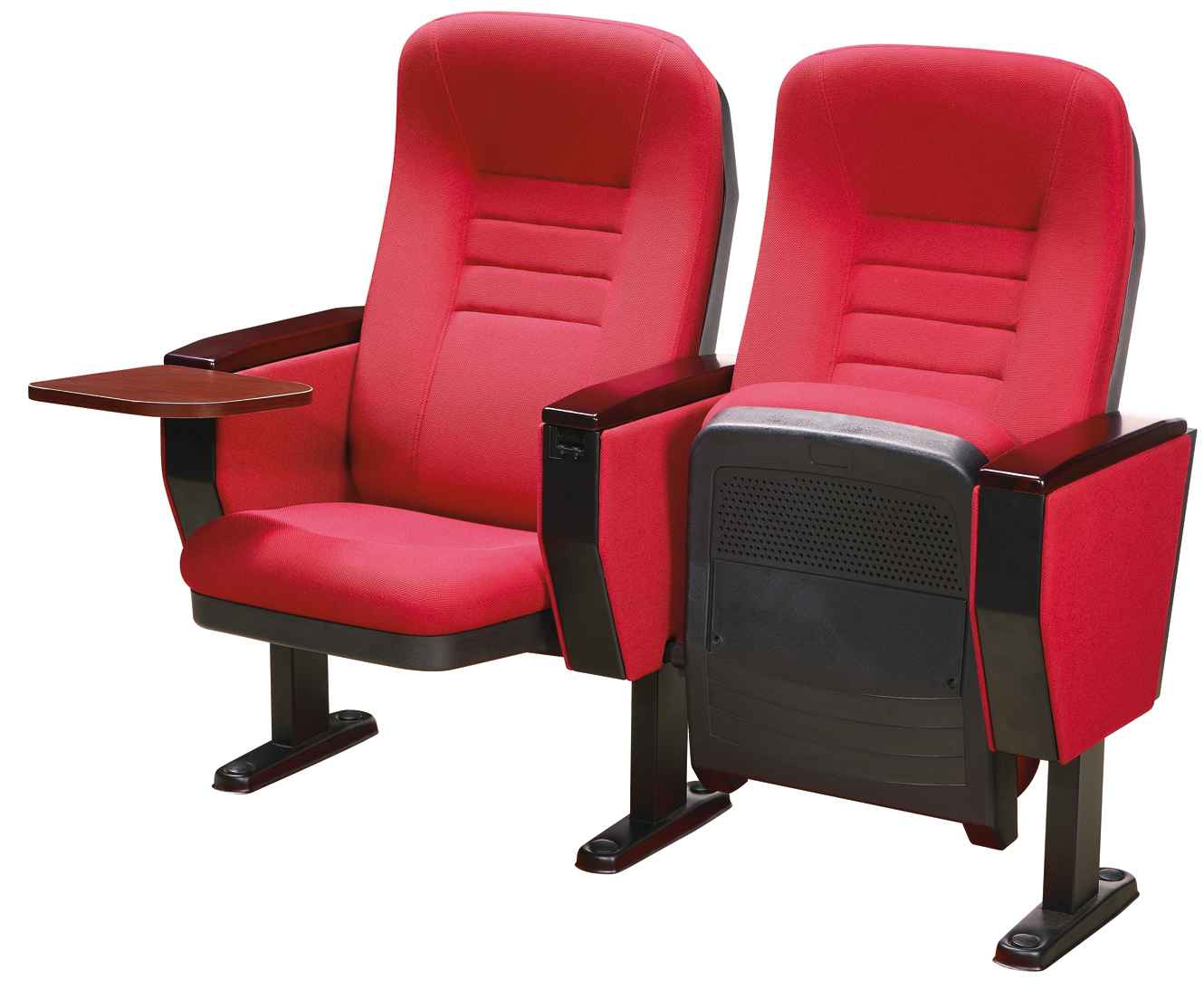

1. Stylish and simple appearance – suitable for high‑end meeting rooms, auditoriums, small conference halls, screening rooms, multi‑functional halls, and other venues.
2. Ergonomic design – medium‑height backrest with continuous raised back and lumbar support shapes made of sponge, effectively alleviating fatigue from prolonged sitting.
3. Fully‑wrapped seat cushion – paired with an exquisitely crafted wooden backrest and seat board, making your venue stand out. The mechanical device prevents violent collisions, while the pneumatic function ensures maximum guest comfort.
4. High‑density ultra‑soft PU foam – with high‑efficiency flame‑retardant additives and a spring steel frame structure, cold‑foamed in one piece. Provides soft comfort, excellent resilience, and long‑term deformation resistance.
5. Premium acoustic shell – made of high‑quality, high‑density hardwood seven‑ply bentwood board, externally covered with imported beech veneer and finished with “Taiwan Dabo” environmentally friendly paint. Features unique honeycomb‑style sound‑absorbing vents, achieving an overall sound absorption rate of 0.5, enabling the venue to eliminate echoes within 0.1 seconds while ensuring good ventilation and noise control.
6. High‑performance linen velvet fabric – stitched and shaped, with strong permeability, excellent sound absorption, wear resistance, colourfastness, moderate softness, and easy cleaning. Customisable colours and textures; optional treatments include 3M stain resistance, Teflon liquid/dust repellency, anti‑static, anti‑bacterial, anti‑mildew, and flame‑retardant properties. Meets Chinese standards GB8410‑94 and GB17951‑1998, as well as British standards BS7176 and BS5852.
7. Robust hardware – utilises “Zhuang” brand products, surface‑treated with oil removal, rust removal, acid pickling, phosphating, and electrostatic powder coating. Foot bases are cold‑rolled steel plate stamped to shape with a thickness of no less than 2.5 mm. Frames, supports and legs receive anti‑rust treatment, followed by an 18‑micron electrophoretic primer and a 30‑micron epoxy resin spray coating. This ensures 400‑hour salt spray resistance or 100‑hour salt bath without rusting, with paint film adhesion exceeding Grade 2 and certified test reports.
8. Patented torque rebound return – utilises the company’s patented torque rebound mechanism, offering fast return speed, zero faults, and no noise, with over 200,000 trouble‑free cycles. Equipped with an imported damping device for completely silent operation. Armrests are made of imported beech wood with “Taiwan Dabo” eco‑paint. The built‑in foldable wooden writing tablet can be stored inside the armrest base, saving space; cup holders can be added. Floor fixing bolts, screws, and metal parts are anti‑corrosion treated to standard. Optional luminous row and number plates (no power supply, wiring, or maintenance required), cup holders, book nets, and other accessories are available.
Detailed Specifications
Upholstery fabric – Soft linen velvet fabric, sewn and shaped, with strong permeability, excellent sound absorption, wear resistance, colorfastness, moderate softness, and easy cleaning. Color and texture can be customized according to client needs. Additionally, it can be treated as required for 3M stain resistance; Teflon liquid and dust repellence; anti‑static, anti‑bacterial, anti‑mildew, and flame‑retardant properties. Flame‑retardant performance meets Chinese standards GB8410‑94 and GB17951‑1998, as well as British standards BS7176 and BS5852.
Seat and back cushions – Modeled in one piece from high‑density ultra‑soft PU foam with added high‑efficiency flame‑retardant elements and a spring steel frame structure, using cold foaming technology. Designed according to ergonomic principles, it offers a soft, comfortable feel with excellent resilience and will not deform even after prolonged use.
Seat and back shell – Made from high‑quality, high‑density hardwood seven‑ply bentwood board, externally covered with imported beech veneer. The finish uses imported “Taiwan Dabo” environmentally friendly paint, resulting in an overall aesthetic that is both beautiful and resistant to deformation. The internal seat frame is a composite of steel frame, velvet fabric, and foam. Features unique honeycomb‑style sound‑absorbing vents, providing an overall sound absorption rate of 0.5, ensuring the entire venue can eliminate echoes within 0.1 seconds and guaranteeing good ventilation for the seats and a noise‑free environment for the whole auditorium.
Hardware – Utilises “Zhuang” brand products. Surfaces undergo oil removal, rust removal, acid pickling, and phosphating, followed by electrostatic powder coating. The foot base is formed from cold‑rolled steel plate via stamping, with a thickness not less than 2.5 mm. The chair frame, seat support, and chair legs undergo anti‑rust treatment, followed by an 18‑micron electrophoretic coating as a protective anti‑corrosion primer. This is then coated with a 30‑micron epoxy resin spray. This ensures the finish passes a 400‑hour salt spray test or a 100‑hour salt bath corrosion resistance test without rusting. Paint film adhesion exceeds Grade 2, and qualified test certificates are obtained.
Armrests – The armrest surface is made of imported beech wood, finished with “Taiwan Dabo” environmentally friendly paint.
Writing tablet – Features a built‑in foldable writing tablet with a wooden writing surface. It can be stored inside the armrest base, making efficient use of space. Cup holders can be added.
Return mechanism – Uses the company’s patented torque rebound mechanism to control seat cushion return. It offers fast return speed, zero faults, no noise, and can be used over 200,000 times. Equipped with an imported damping device, operation is completely silent.
Floor fixing bolts – All screws, metal components, and chair leg screws undergo standard anti‑corrosion treatment. Chair legs and other metal parts receive anti‑rust and anti‑corrosion treatment.
Number and row plates – Optional luminous row and number plates are available (require no power supply, wiring, or maintenance).
Cup holder, book net, etc. – Optional accessories are available upon request.
SEO Text Block (for search engines – placed at page bottom)

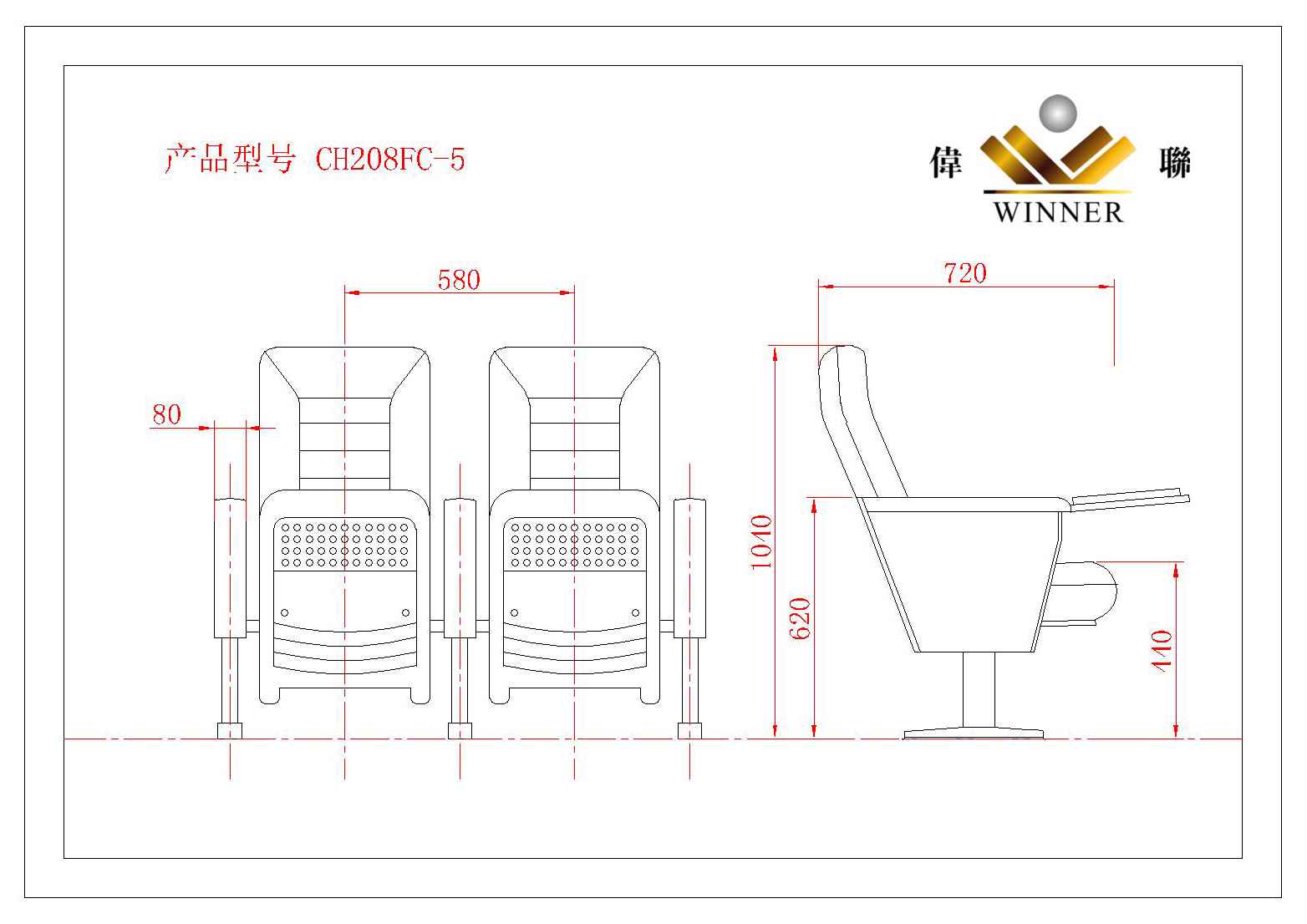

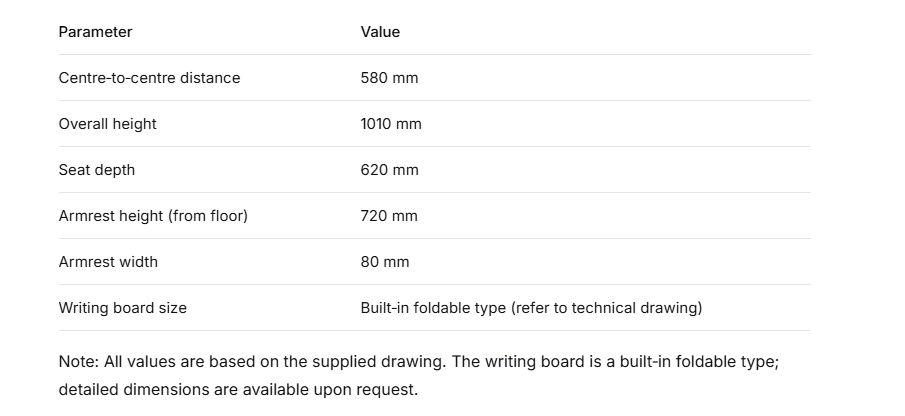

This auditorium chair model WLCH208FC‑5 features high‑density ultra‑soft PU foam cushions integrally cold‑foamed with a spring steel frame, a seven‑ply hardwood bentwood shell with imported beech veneer and “Taiwan Dabo” eco‑paint, and honeycomb acoustic vents (sound absorption rate 0.5, echo elimination within 0.1s). The upholstery is soft linen velvet, breathable and wear‑resistant, with optional protective treatments and flame‑retardant certifications (GB8410‑94, GB17951‑1998, BS7176, BS5852). Metal components are “Zhuang” cold‑rolled steel ≥2.5 mm with electrophoretic and epoxy coating, offering 400‑hour salt spray resistance. The patented torque rebound mechanism ensures fast, silent operation with over 200,000 trouble‑free cycles. Armrests are imported beech wood; the foldable wooden writing tablet stores inside the armrest base. Key dimensions include 580 mm centre‑to‑centre distance, 1010 mm overall height, 620 mm seat depth, 720 mm armrest height, and 80 mm armrest width. Optional luminous row/number plates, cup holders, and book nets are available. Ideal for high‑end meeting rooms, auditoriums, lecture halls, screening rooms, and multi‑functional venues, this chair combines ergonomic comfort, acoustic performance, and elegant durability.
